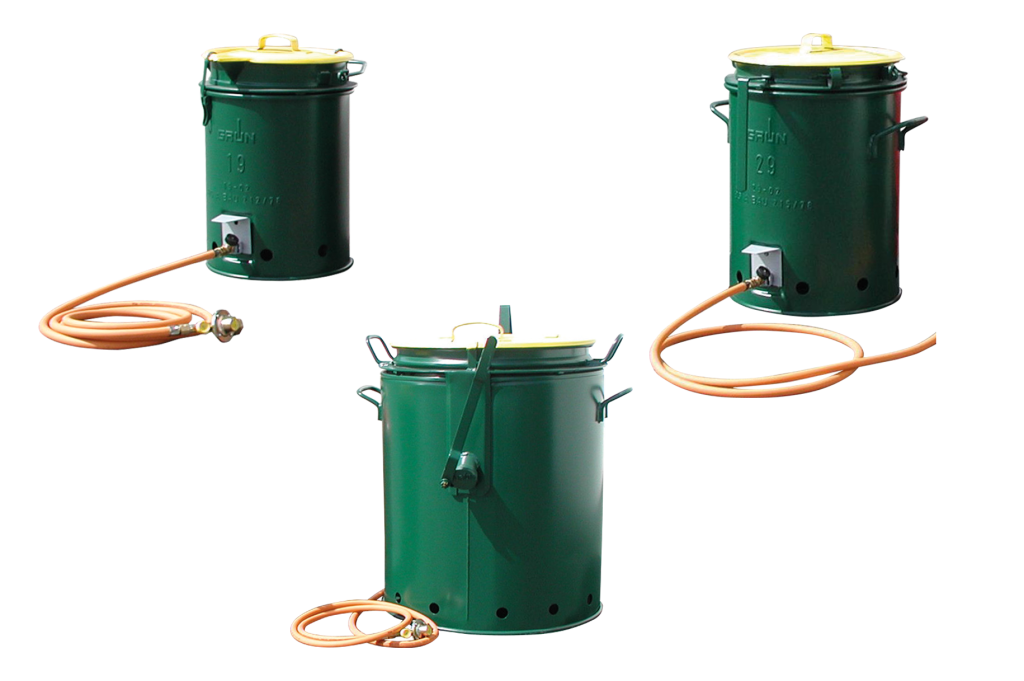

Bitumen boiler REKORD 19, 29, and 49

  • Powerful small bitumen boiler with propane burner

Description

High-performance small bitumen boilers with removable tub. Heating is by means of a windshielded propane vortex beam burner.

Construction and fitting comply with the regulations of the German Bau-Berufsgenossenschaft (construction liability insurance).

With the boiler types 19 and 29 the tub can be easily pulled out and used as a bucket. The equipment of the bitumen boiler 49 includes a lockable hinged lid, lackable drain cook, double jacket insulation and, on request, a dial thermometer for temperature control.





Product Article number
Bitumen boiler REKORD 19 l 0201 0000
Bitumen boiler REKORD 29 l 0202 0000
Bitumen boiler REKORD 49 l 0203 0000

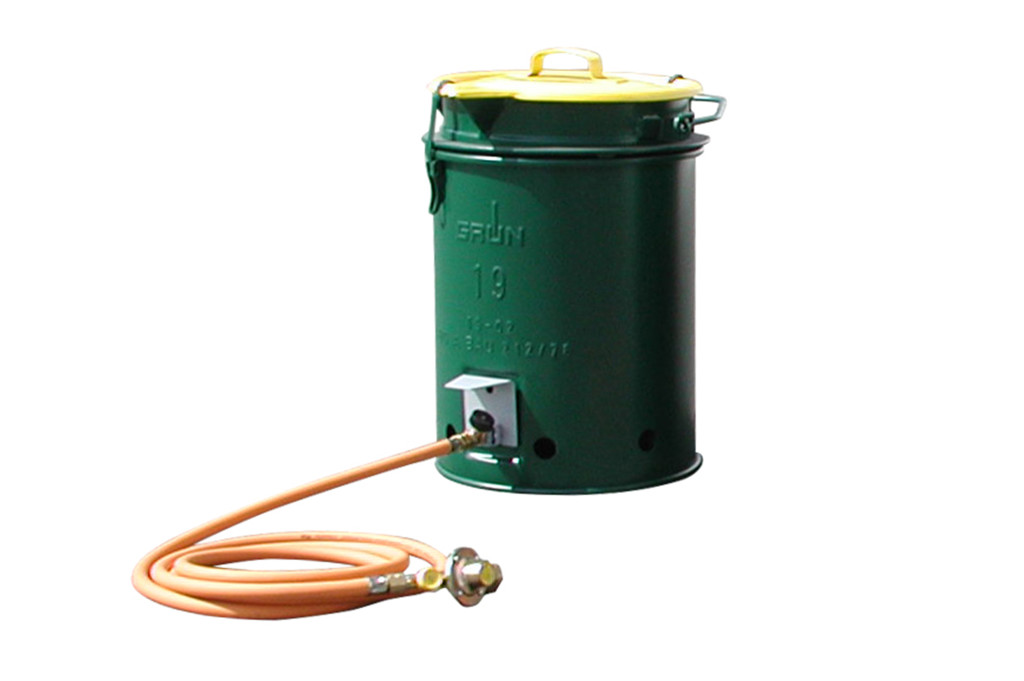

Technical data REKORD 19

Capacity in litres: approx. 19 l
Bitumen through-put: 40 l/h
Max. propane consumpt. approx. max. 0,6 kg/h
Operating pressure 1,5 bar
Weight: approx. 13 kg

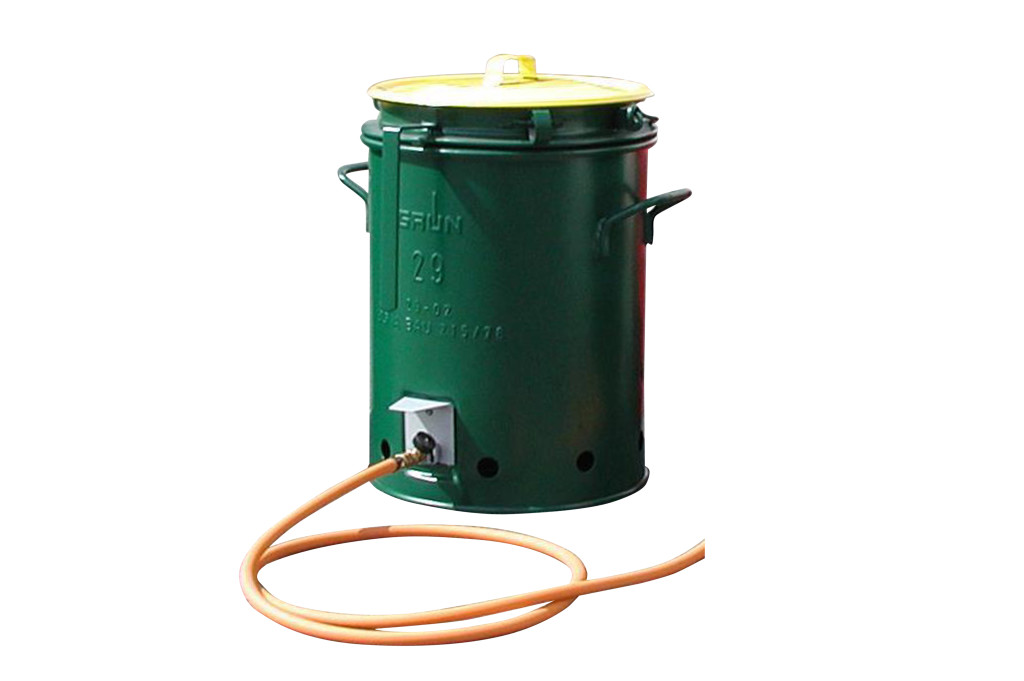

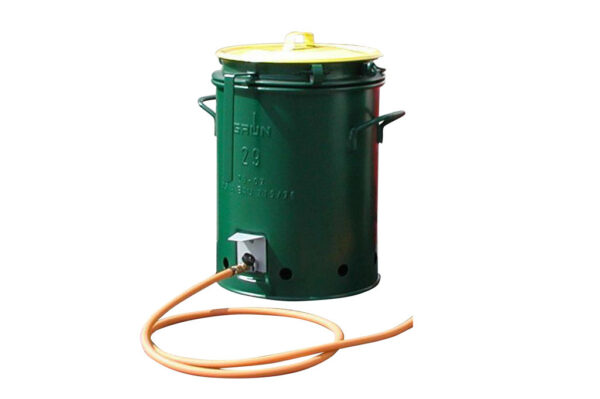

Technical data REKORD 29

Capacity in litres: approx. 29 l
Bitumen through-put: 60 l/h
Max. propane consumpt. approx. max. 0,8 kg/h
Operating pressure 1,5 bar
Weight: approx. 27 kg

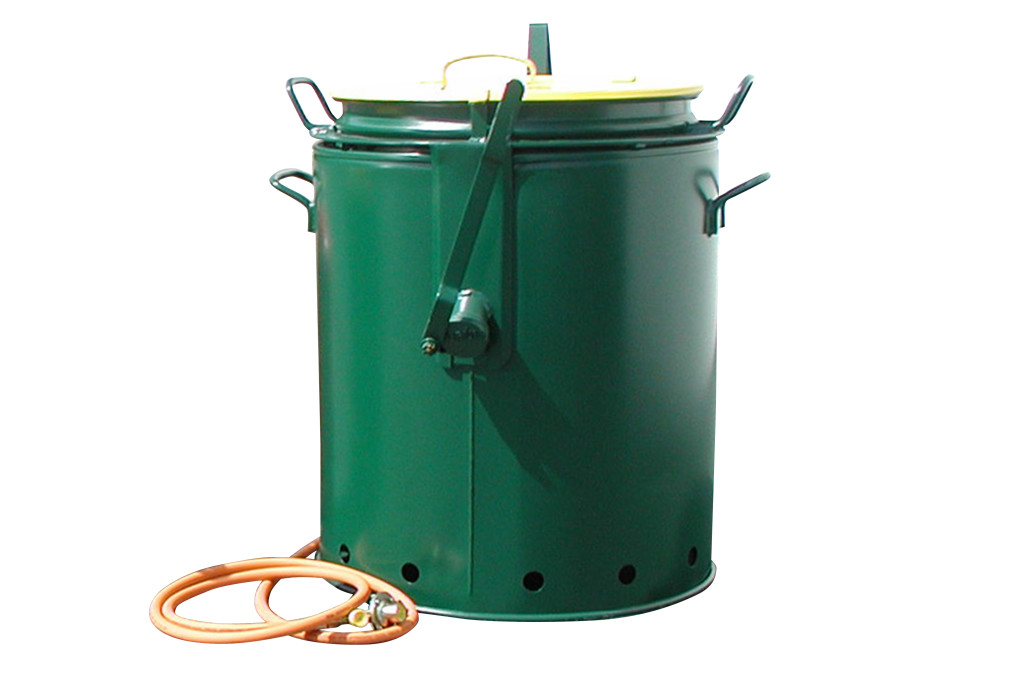

Technical data REKORD 49

Capacity in litres: approx. 49 l
Bitumen through-put: 100 l/h
Max. propane consumpt. approx. max. 1,4 kg/h
Operating pressure 1,5 bar
Weight: approx. 49 kg
